Tempered Vs. Laminated Glass: Choosing the Right Safety Glass

Mar 10, 2021 8:00:00 AM / by Greg Martell

Tempered vs. Laminated Glass

Glass might not be top of mind as a material that improves a space’s security and safety. Considered a fragile material by many, glass may seem like a material that always needs to be handled with care -- and there are plenty of glass types that do.

Two commercial glasses, however, have the integrity to meet some of the toughest demands: tempered and laminated glass.

Made to withstand heavy blows -- intentional or accidental -- both glass types provide a clear barrier of protection from unwanted intrusions and dangerous shards.

Tempered Vs. Laminated Glass: A Closer Look

Comparing tempered vs. laminated glass, both safety glasses offer similar levels of protection. They do, however, have stark differences -- most of which stem from how they’re manufactured.

Breaking Down Tempered Glass

tempered glass broken

Tempered glass  -- also called toughened glass -- stands up to the heaviest hits glass can take.

Heated to temperatures of more than 1000° F and then quickly cooled, the glass becomes up to 5x stronger than traditional glass. Through the tempering process, tension is created in a glass pane’s center, while its surface becomes compressed.

The opposing forces within a pane make tempered glass resist bending and breaking. This material also offers some protection from heat, though you shouldn’t install it in your fireplace.

In addition to its durability, tempered glass reduces the risk of injuries when broken. Rather than shattering into jagged shards, tempered safety glass breaks into small, pebble-like pieces.

Digging Into Laminated Glass

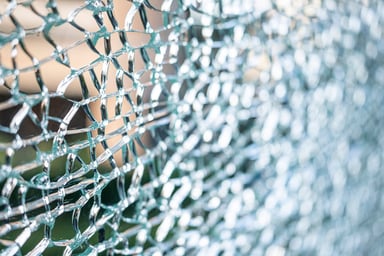

laminated glass broken

Laminated glass panes comprise a clear layer of vinyl bonded by heat between at least two plies of glass.

The additional layers give laminated safety glass enhanced integrity against heavy blows as well as some sound-dampening ability. With a special polycarbonate layer, laminated glass becomes bulletproof.

One of the biggest benefits of laminated glass is how it protects those nearby from broken glass. In the event of a breakage, laminated glass panes stay intact -- its middle layer holds the glass pieces bonded to it in place. People who are nearby when laminated glass breaks won’t have to worry about shards going airborne or falling on the ground.

Tempered Vs. Laminated Glass: The Right Glass for the Right Job

Meant to offer protection from both impacts and breakages, tempered and laminated glass fill many of the same applications. For instance, both types of commercial window glass are often used in commercial doors.

Tempered glass is the preferred material for interior applications. Why? Because of its durability and how it breaks. It takes a lot to break tempered glass, and its small, rounded pieces are less likely to cause injury should the pane shatter. Tempered glass is ideal for:

  • Skylight windows
  • Shower enclosures
  • Glass doors for tubs
  • Furniture
  • Glass cases
  • Customer service windows
  • Windows for ground-level storefronts
  • Railings
  • Entryway glass
  • Glass partitions

Because it stays together when broken, laminated glass is most frequently installed in high-traffic public spaces. With the exception of shower enclosures, laminated glass is found in the same applications as tempered glass. In some coastal municipalities where hurricanes are common, local building codes require laminated glass windows installed in buildings.

In security applications -- such as storefront windows and doors or display cases, laminated glass gives you the benefit of time. Because laminated glass pieces stay together when broken, it’s very difficult to create an opening -- it’s not something that can be done in a few minutes. Made with a polycarbonate laminated glass becomes much harder to actually break through.  Laminated glass is often rated for the amount of time it withstands blows before being broken through.

Of note, glass pieces can have the best of both worlds -- a new trend in glass manufacturing is to create laminated glass pieces using tempered glass panes. Combining both glass types gives you the strength of tempered glass and the protection from shards laminated glass provides.

Fabricating Tempered & Laminated Glasses

Though both commercial glass types are designed to resist direct blows, tempered and laminated glass pieces can be custom fabricated to meet a project’s needs.

Regardless of what additional work either type needs for a project, it’s critical to share project details with your glass manufacturer from the beginning.

Any alteration to a piece of tempered glass must be done before the pane goes through the tempering process. The same goes for laminated glass pieces made with tempered glass.

The reason? It’s incredibly difficult to shape or bevel either glass type before processing, and you risk damaging the finished pieces.

Learn more about our glass manufacturing and fabrication capabilities:

New call-to-action



Tempered Vs. Laminated Glass For Safety and Security

Compared to traditional glass, tempered and laminated glass are in a league of their own.

Manufactured to stand up to blunt force, both safety glasses offer multiple layers of protection from impacts and broken glass.

Take a deeper dive into what makes tempered glass so strong.

Download our Glass Tempering 101 Guide!

Glass Tempering 101 Infographic Guide. Click to Learn More.



Topics: Commercial Glass, Tempered Glass, Shower Enclosures, Laminated Glass

Written by Greg Martell
